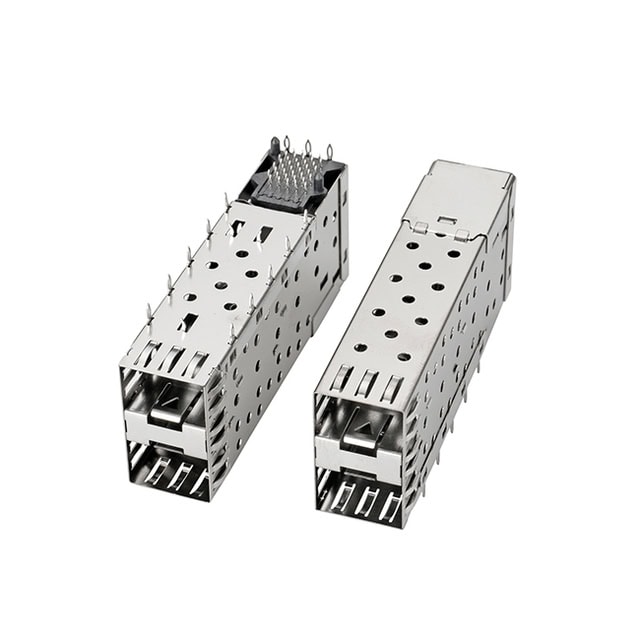

SFP 2X1 Connector S2N31Y5100NA4 (Cross out TE Connectivity 2007198-1)

Product Overview

The S2N31Y5100NA4 is a Revision A component designed for high-speed networking applications. It is part of the Vitalconn product line for SFP (Small Form-factor Pluggable) systems, facilitating dual-port stacked configurations to optimize space on printed circuit boards.

Product Specifications

• Revision: A.
• Manufacturer: Vitalconn.
• Measurement Units: Millimeters (mm).
• General Tolerances:
  • .0: ±0.38
  • .00: ±0.25
  • .000: ±0.10
  • Angle: ±2.00°.
• Technical Notes: Detailed material and plating specifications (e.g., LCP housing or gold plating thickness) are not explicitly listed in the provided excerpts for this specific part number.

Product Features

• Stacked Configuration: Designed for 2X1 port layouts to maximize density.
• Precision Engineering: Manufactured with tight tolerances (up to ±0.10 mm) for reliable mating.
• Industry Standard Compatibility: Part of the SFP 2X1 cage connector series as indicated by the notebook title.

Applications

• Network Infrastructure: High-density switches and routers.
• Data Communications: Server and storage area network (SAN) equipment.
• Telecommunications: Base stations and optical transport systems.

Packing Details

The specific packing lists and tray quantities for part number S2N31Y5100NA4 are not provided in the current source excerpts. (For reference, similar components in this series, such as the S1N3A23000CA4 cage, are typically packed in trays of 20 pieces).

FAQ

A1. What is the current revision level of the S2N31Y5100NA4 drawing?

Q1: The drawing is currently at Revision A.

A2. What are the dimensional units used for this connector?

Q2: The dimensions and tolerances for this product are established in millimeters (mm).

A3. Who is the manufacturer of this SFP component?

Q3: This product is manufactured by Vitalconn, as indicated by the “FOR YOUR VITAL CONNECTION” title block and the manufacturer’s logo.
