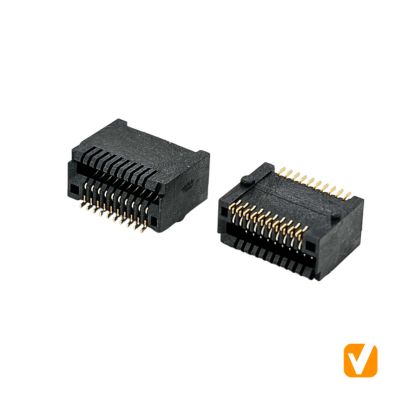

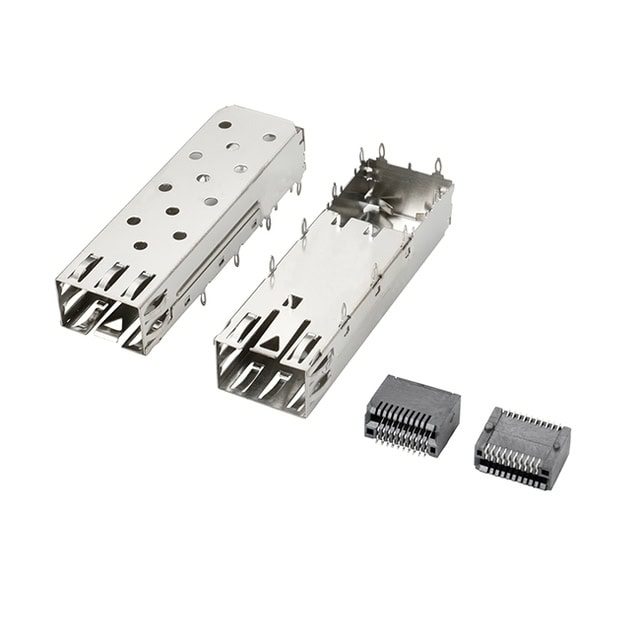

SFP+ 1X1 Connector Press Fit Vitalconn S2C2100D00BA4(Cross out MOLEX 74441-0010)

The VITALCONN S2C2100D00BA4 is a high-performance SFP+ 1X1 connector designed for single-port high-speed data transmission applications. It features a press-fit terminal tail for reliable solderless PCB mounting and is RoHS compliant.

Cage Connector Type	Хост CONN
Number of Pins	20
Cross Out	74441-0010(Molex)

S2C2100D00BA4

Product Overview

This component is a single-port SFP+ connector (1×1 configuration) designed for surface mount assembly. It provides robust signal integrity and mechanical retention for SFP+ transceiver modules, suitable for high-speed data transmission up to 16Gbps per port. The connector features a high-temperature LCP housing with UL94 V-0 rating and phosphor bronze contacts with selective gold plating.

Product Specifications

Connector Type: СФП+
Port Count: 1×1
Terminal Tail: Press Fit
RoHS: Compliant
Operating Temperature: -40°C to +95°C
Storage Temperature: -55°C to +105°C
Contact Resistance: 20 milliohms max initial
Dielectric Withstanding Voltage: 300V AC/min
Current Rating: 0.5 Amps Max
Durability: 100 cycles min
Insertion Force: 40N max
Extraction Force: 11.5N max
Reflow Soldering Temperature: 255~265°C max for 5~10 seconds
Housing Material: High Temperature LCP, Black, UL94 V-0
Contact Material: Phosphor Bronze
Contact Plating: 15μ” Gold on mating area, Gold flash on solder tails, 50μ” Nickel underplating overall

Product Features

Single-port SFP+ connector for compact designs
Press-fit terminal tail for solderless PCB connection
RoHS compliant
Designed for high-speed signal integrity up to 16Gbps
Gold-plated contacts for reliable mating cycles and low contact resistance
High-temperature LCP housing suitable for lead-free reflow soldering processes
Operating temperature range of -40°C to +95°C
Durable design with 100 cycle minimum durability

Applications

Network switches and routers
Data center equipment
Telecommunications infrastructure
Industrial networking devices
Fiber optic transceiver modules

Packing Details

Packaging type: Tape and reel packaging
Quantity per reel: 600 pcs per plastic reel (transparent)
Cover tape and carry tape used for product protection
8 reels stacked and packed in a waterproof bag
Final box dimensions: 33.5 x 33.5 x 18 cm

FAQ

Q1: What is the terminal tail type for S2C2100D00BA4?
A1: The terminal tail type is Press Fit, which allows for solderless PCB mounting.

Q2: What is the operating temperature range for this product?
A2: The operating temperature range is -40°C to +95°C, with a storage temperature range of -55°C to +105°C.

Q3: What is the recommended reflow soldering temperature for this connector?
A3: The reflow soldering temperature is 255~265°C maximum for 5~10 seconds.
