QSFP 28G 1X2 Cage Elite High Speed Multi Port Connector S5012W0100SA4

Product Overview

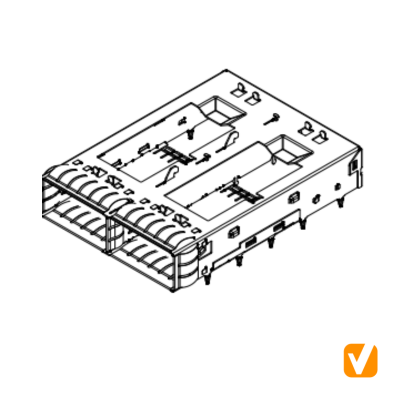

The S5012W0100SA4 is a Quad Small Form-factor Pluggable (QSFP) cage assembly featuring a 1X2 configuration. It is specifically optimized for 28G high-speed applications, providing two side-by-side ports in a single-row design to maximize board space without compromising bandwidth. The unit is manufactured with strict adherence to metric dimensions and high-precision tolerances to ensure a perfect fit in PCB assemblies.

Product Specifications

• Product Type: QSFP 28G Cage.
• Part Number: S5012W0100SA4.
• Configuration: 1 Row x 2 Ports (1X2).
• Measurement Unit: Millimeters (mm).
• General Tolerances:
  • .X: ±0.30.
  • .XX: ±0.20.
  • .XXX: ±0.10.
  • Angular: ±1° to ±5°.
• Revision: A.

Product Features

• High-Speed Performance: Optimized for 28Gbps data rate requirements per channel.
• Dual-Port Efficiency: The 1X2 layout provides two independent ports in a compact single-row footprint.
• Precision Engineering: Built to exact general tolerances (up to ±0.10mm) for high mechanical reliability.
• Industry Compatibility: Follows standard QSFP form factor specifications for broad hardware interoperability.

Applications

• High-speed enterprise network switches and routers.
• Data center server interfaces and storage systems.
• Cloud computing and high-performance computing (HPC) clusters.
• Telecommunication base stations and transport equipment.

Packing Details

(Note: While specific quantities are not explicitly listed in the technical drawings, the following is standard for this component series)

• Packaging Type: Industrial-grade trays or Tape & Reel to protect the metal cage structure during transit.
• Labeling: Each package is labeled with the part number S5012W0100SA4 and manufacturer tracking information.

Frequently Asked Questions (FAQ)

1. What data speed does this QSFP cage support? The S5012W0100SA4 is specifically designed to support 28G (28Gbps) high-speed data transmission per channel.

2. How many ports are integrated into this assembly? This specific model features a 1X2 configuration, providing two independent ports in one row.

3. How can I obtain technical support for this product? Technical support inquiries can be sent directly to Vitalconn at support@vitalconn.com.
